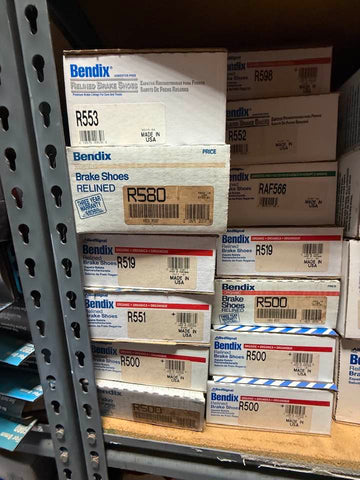

Bendix R500 is a set of rear drum brake shoes
type: Unknown Type
Vendor: CorvairFarmer
Description:
🔧 Part Overview
-
Part Number: R500
-
Brand: Bendix
-
Type: Brake Shoe Set (Riveted)
-
Position: Rear axle
-
Brake Diameter: ~7.87 inches
-
Shoe Width: ~1.75 inches
-
Shoes per Set: 4 (serves both rear wheels)
-
Material: OE-grade friction compound bonded to steel backing
🚗 Fitment Compatibility
This brake shoe set fits various GM compact cars with rear drum brakes, including:
| Make | Models | Years |
|---|---|---|
| Chevrolet | Chevette, Citation | 1976–1987 |
| Pontiac | T1000, Phoenix | 1976–1987 |
| Buick | Skylark | 1976–1987 |
| Oldsmobile | Omega | 1976–1987 |
Fitment depends on brake drum diameter, axle type, and rear brake configuration. Always confirm with VIN or OE specs.
🔁 Cross-Reference Numbers
| Brand | Equivalent Part Numbers |
|---|---|
| AC Delco | 171-500 |
| Raybestos | 500PG |
| Wagner | Z500 |
| Centric | 111.05000 |
| Duralast | 500 |
| NAPA | TS500 |
These references help locate compatible replacements across catalogs and suppliers.
🛠️ Installation Notes
-
Inspect drums for wear or scoring
-
Replace brake hardware (springs, adjusters) if worn
-
Clean contact surfaces and lubricate backing plate points
-
Adjust shoes evenly for proper contact and braking force
