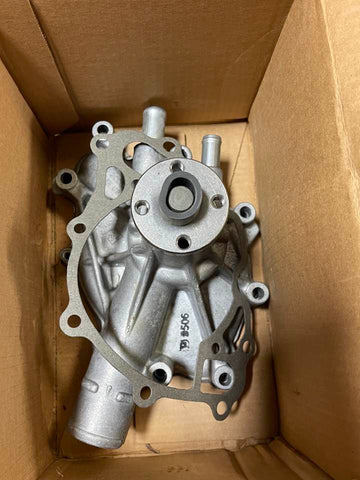

WP‑541 Water Pump – Ford 302 / 351W V8 (1975–1980)
type: Unknown Type
Vendor: CorvairFarmer
Description:
WP‑541 is a mechanical water pump used on 1975–1980 Ford, Mercury, and Lincoln 302/351W small‑block V8 engines. It’s a clockwise‑rotation cast‑iron pump,
🔧 Specifications & Dimensions
| Attribute | Value |
|---|---|
| Part Number | WP‑541 / PW541 / AW541 |
| Type | Mechanical water pump |
| Rotation Direction | Standard (clockwise) |
| Housing Material | Cast iron |
| Impeller Material | Stamped steel |
| Hub Height | ~5.50 inches |
| Pulley | Not included |
| Gasket | Usually included |
| Country of Origin | USA / China (varies) |
| Shipping Weight | ~7–8 lbs |
| Box Dimensions | Approx. 10" × 8" × 6" |
🚗 Verified Fitment Chart
(Ford Windsor small‑block V8 applications)
| Make | Model | Engine | Years |
|---|---|---|---|
| Ford | F‑100 / F‑150 | 302 / 351W | 1975–1980 |
| Ford | Bronco | 302 / 351W | 1975–1979 |
| Ford | LTD | 302 / 351W | 1975–1979 |
| Ford | Thunderbird | 302 / 351W | 1977–1979 |
| Mercury | Cougar | 302 / 351W | 1977–1979 |
| Lincoln | Versailles | 302 V8 | 1977–1980 |
Cross‑references: Motorcraft PW541 • Airtex AW541 • Gates 43040 • GMB 125‑1410 • ASC WP‑541
